Product data
General Information
|
Light source replaceable
|
No
|
|
Number of gear units
|
-
|
|
Driver/power unit/transformer
|
Driver
|
|
Driver included
|
Yes
|
|
Optic type
|
Symmetric
|
|
Optical cover/lens type
|
Lens
|
|
Luminaire light beam spread
|
60 Optical
|
|
Sensor socket
|
-
|
|
Cable length
|
-
|
|
Protection class IEC
|
Safety class I
|
|
Certifications
|
CE
|
|
Lifetime (hour)
|
50,000h
|
|
EU RoHS compliant
|
Yes
|
|
Light source engine type
|
LED
|
Operating and Electrical
|
Input power
|
350W
|
|
Input voltage
|
100-277Vac
|
|
Input frequency
|
50/60Hz
|
|
Current
|
3.5A max
|
|
THD
|
＜20%
|
|
Power factor
|
0.95
|
Mechanical and Housing
|
Housing material
|
Aluminum
|
|
Reflector material
|
-
|
|
Optical cover/lens material
|
Polycarbonate
|
|
Optical cover/lens finish
|
Clear
|
|
Product dimensions (mm)
|
386*405*140mm
|
|
Product dimensions (inch)
|
-
|
|
Product color
|
Black
|
Approval and Application
|
Ingress protection code
|
IP67
|
|
Mech.impact protection code
|
-
|
Initial Performance (IEC Compliant)
|
Initial luminous flux
|
52500Lm
|
|
Luminous flux tolerance
|
+/-10%
|
|
Initial LED luminaire efficacy
|
150Lm/W
|
|
Init.Corr.Color Temperature
|
5000K
|
|
Init.Color Rendering Index
|
＞70
|
|
SCDM
|
≤5
|
Application Conditions
|
Ambient temperature range
|
-40 to +50℃
|
|
Dimming
|
-
|
Logistical Data
|
Order product name
|
TG203/350/750/60°/M2L/BK
|
|
Net weight (piece)
|
9.70kg
|
|
Gross weight (piece)
|
10.20kg
|
|
Packaging dimensions (mm)
|
-
|
|
Packaging dimensions (inch)
|
-
|
|
Packaging unit (piece)
|
Folding carton box 1
|
|
Volumen (m³)
|
-
|
|
Volumen (ft³)
|
-
|
Application
Area Lighting ◎ Architecture Lighting Stadium Lighting Light Tower
Light Distribution & Spectum

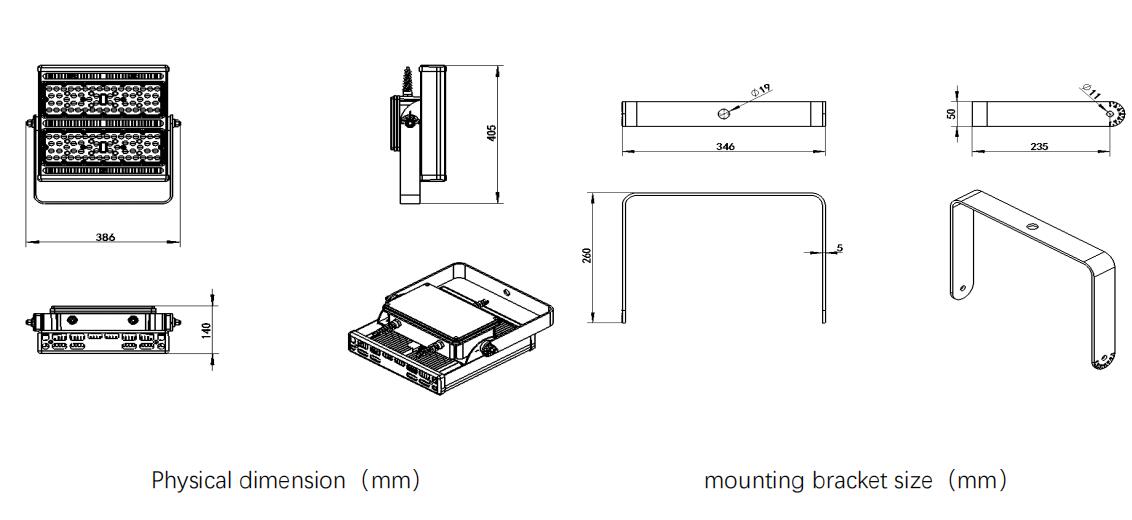

Dimensional drawing
Accessories
|
Material
|
Description
|
 Lock the handle
|
Lock bolt is used for securing a adjustable part of the lighting fixture in a desired position
|
 Mounting bracket
|
Multiple mounting brackets are available
|
